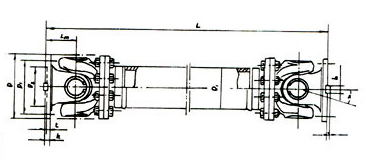

| WF- non-creeping flange type |
| |
| Model |
Length |
Rotor inertia I kg.m2 |
Weight G kg |
| Lmin |
Lmin |
Growth
100mm |
Lmin |
Growth
100mm |
| SWC180WH |
560 |
0.248 |
0.0070 |
58 |
2.8 |
| SWC225WH |
610 |
0.636 |
0.0234 |
93 |
4.9 |
| SWC250WH |
715 |
1.352 |
0.0277 |
143 |
5.3 |
| SWC285WH |
810 |
2.664 |
0.0510 |
220 |
6.3 |
| SWC315WH |
915 |
4.469 |
0.0795 |
300 |
8.0 |
| SWC350WH |
980 |
7.388 |
0.2219 |
412 |
15.0 |
| SWC390WH |
1100 |
13.184 |
0.2219 |
588 |
15.0 |
| SWC440WH |
1290 |
23.250 |
0.4544 |
880 |
21.7 |
| SWC490WH |
1360 |
40.750 |
0.4744 |
1173 |
21.7 |
| SWC550WH |
1510 |
68.480 |
1.3570 |
1663 |
34 |
