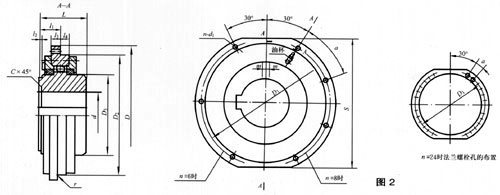

WJA shaft coupling

Model	Nominal torque Tn kN.m	Permits with the radial forcekN	d H7	L	D	D1	D2 h6	D3
WJA1	4	14.5	40,42,45,48	84	250	220	160	85
			50,55
WJA2	5	16.5	45,48,50,55	84	280	250	180	90
			60	107
WJA3	7.1	18.5	48,50,55	84	320	280	200	95
			60,65	132
WJA4	9	20	60,65,70,75	107	340	300	220	130
			80,85	132
WJA5	14	31	70,75	107	360	320	240	150
			80,85,90,95	132
WJA6	18	35	80,85,90,95	132	380	340	280	170
			100,110	167
WJA7	22.4	38.5	80,85,90,95	132	400	360	280	170
			100,110,120	167
WJA8	28	42	100,110,120	167	420	380	310	200
			130,140	202
WJA9	35.5	49	100,110,120	167	450	400	340	230
			130,140,150	202
WJA10	71	115	130,140,150	202	550	500	420	280
			160,170,180	242
WJA11	112	125	160,170,180	242	580	530	450	300
			190,200	282
WJA12	180	150	190,200,220	282	650	600	530	360
			240,250	330
WJA13	315	250	200,220	282	680	630	560	400
			240,250,260	330
WJA14	400	300	240,250,260	330	710	660	600	440
			280,300	380
WJA15	500	340	240,250,260	330	780	730	670	500
			280,300,320	380
WJA16	630	380	280,300,320	380	850	800	730	550
