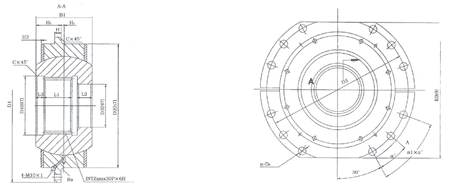

WZL internal spline reel shaft coupling main parameter and size Model WZL01 WZL02 WZL03 WZL04 WZL05 WZL06 WZL07 WZL08 WZL09 WZL10 WZL11 WZL12 WZL13 WZL14 WZL15 WZL16 WZL17 WZL18 Nominal torque KN.m 6.3 9.0 12.5 16 20 25 40 63 80 125 200 315 400 500 630 800 1120 1490 Transmission torque KN.M Work rank M3 6.3 9.0 12.5 16 20 25 40 63 80 125 200 315 400 500 630 800 1120 1490 M4 5.6 8.0 11.2 14 18 22.4 35.5 56 71 112 180 280 355 450 560 710 1000 1380 M5 5.0 7.1 10.0 12.5 16 20 31.5 50 63 100 160 250 315 400 500 630 900 1250 M6 4.5 6.3 9.0 11.2 140 18 28 45 56 90 140 224 280 355 450 560 800 1120 M7 4.0 5.6 8.0 10.0 12.5 16 25 40 90 80 125 200 250 315 400 500 710 1000 M8 3.55 5.0 7.1 9.0 11.2 14 22.4 35.5 45 71 112 180 224 280 355 450 630 900 GB3478.1 ( Spline INT Z×m×30P×6H) 15Z×3m 18Z×3m 22Z×3m 27Z×3m 18Z×5m 22Z×5m 26Z×5m 30Z×5m 34Z×5m 38Z×5m 26Z×8m 30Z×8m 34Z×8m 38Z×8m 44Z×8m 50Z×8m 44Z10m 56Z×10m K(h9) 250 280 300 320 340 360 400 450 500 530 580 600 640 700 760 860 1020 1100 B1 80 84 92 97 127 137 157 167 182 192 207 222 237 262 287 352 410 430 D1 300 320 340 360 380 400 450 500 550 580 650 680 710 780 850 950 1120 1200 D2(h7) 190 200 220 240 260 280 340 380 420 450 530 560 600 670 730 840 975 1055 D3(h7) 40 50 60 70 80 100 120 140 160 180 190 220 250 280 320 360 400 540 D4(h7) 50 60 70 85 100 120 140 160 180 200 222 254 286 318 366 420 460 580 D5 260 280 300 320 34 0 360 400 450 500 530 600 630 660 730 800 900 1055 1135 H 12 15 20 25 35 45 50 60 H1 3 4 5 6 7 8 9 10 15 25 H2 37 39 43 44.5 59.5 63.5 73.5 77.5 85 90 96.5 104 110.5 123 134.5 166 190 190 H3 4 5 5.5 10.5 12.5 13.5 16 14 15.5 16 17.5 16 17.5 37 L1 30 30 35 40 50 55 70 75 85 95 105 120 135 150 170 220 260 270 L2 18 22 25 30 35 40 45 55 60 L3 22 37 52 65 70 n-D6 8—14 8--18 12--22 24--22 24--26 24--29 Bolt M12 M16 M20 M24 M27 n× α° 1×40 2 × 2 0 5 × 1 0 Ra 1.6 2 2.5 3 4 C 1.6 2 2.5 3 4 5 6 Rotor inertia kg.m2 0.13 0.19 0.27 0.37 0.56 0.76 1.65 2.86 4.49 6.18 12.5 16.4 23.13 39.18 59.25 114.5 260.4 337.8 Weight kg 18.9 22.6 28 32.8 47 57 90 122 157 190 290 335 393 551 693 1250 1950 2250
