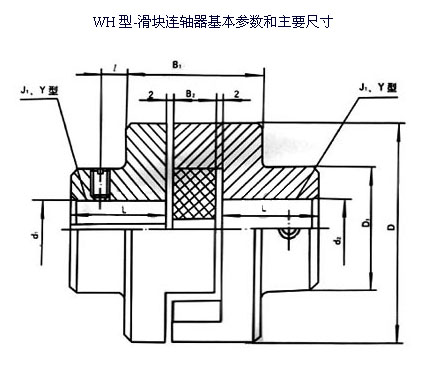

Slide shaft coupling, WH - slide junction box basic parameter and main dimension mm Model Nominal torque Tn(N.m) Permits with the rotational speed[n]r/min Axle hole diameter Axle hole length D D1 B1 B2 l Rotor inertia Kg.m2 Quality kg d1 d2 Y J1 L mm WH1 16 10000 10,11 12,14 25-32 22-27 40 30 52 13 5 0.0007 0.6 32-42 27-30 WH2 31.5 8200 12,12,16,(17),18 50 32 56 18 5 0.0038 1.5 WH3 63 7000 16,(17),18,20,22 42-52 30-38 70 40 60 18 5 0.0063 1.8 52-62 38-44 WH4 160 5700 20,22,24,25,28 80 50 64 18 8 0.013 2.5 WH5 280 4700 25,28,30,32,35 62-82 44-60 100 70 75 23 10 0.045 5.8 82-112 60-84 WH6 500 3800 30,32,35,38,40,42,45 120 80 90 33 15 0.12 9.5 WH7 900 3200 40,42,45,48,50,55 112 84 150 100 120 38 25 0.43 25 112-142 84-107 WH8 1800 2400 50,55,60,63,65,70 190 120 150 48 25 1.98 55 WH9 3550 1800 65,70,75,80,85 172-212 132-167 330 190 180 58 40 4.9 85 172-212 132-167 WH10 5000 1500 80,85,90,95,100 330 190 180 58 40 7.5 120 　Note：1、 in the table the shaft coupling quality, the rotor inertia are according to the smallest axle hole diameter and the greatest yardage calculation approximate value. 　2、in the parenthesis value does not select as far as possible. 　3、working conditions temperature - 20~+70℃.
